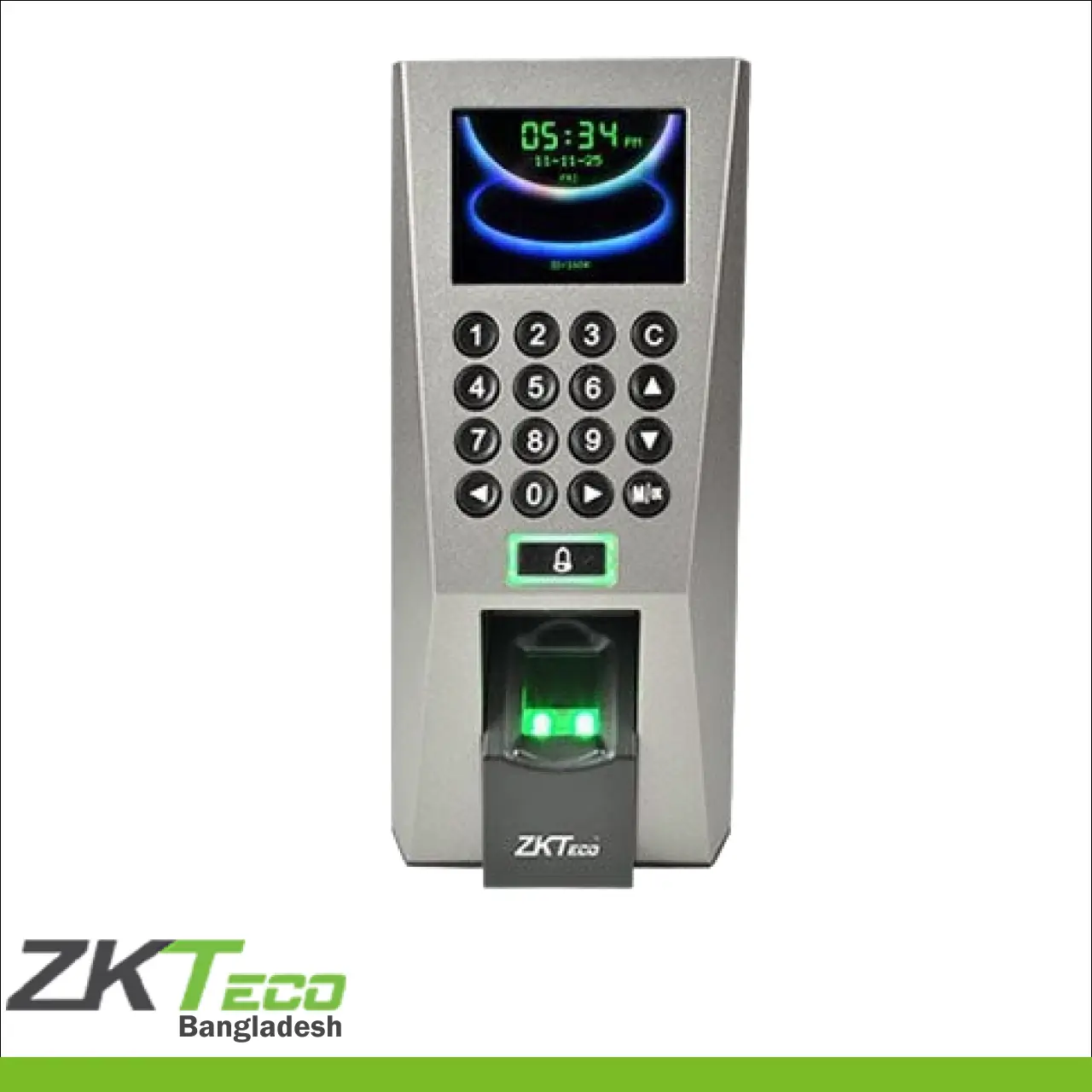

ZKTeco F18 Access Control And Time Attendance

ZKTeco F18 Access Control And Time Attendance

ZKTeco F18 is an innovative biometric fingerprint reader for access control applications. Its high-performance firmware features and compact design have become one of ZKTeco’s most popular devices. It is used with the latest firmware of ZKTeco F18 with user-friendly UI and flexible user privilege settings for multi-level management.

The new hardware platform uses the 1.2Ghz CPU core-board ZMM210. With the optimization of both hardware and firmware, the new f18 is able to verify fingerprints even more efficiently. The device offers the flexibility of both stand-alone installation and installation with any third-party access control panels that support the standard Wiegand signal. TCP/IP and RS485 are also available to allow F18 to be used in different networks.

Zkteco F18 Specification:

fingerprint capacity:                         3000 Templates for
Capacity of the card:                          5,000 people (Optional)
transactions:                                       30,000 of the transactions
The sensor of the:                              Optical ZK Sensor
The version of the algorithm:          ZK Finger VX9.0 and 10.0
Communications:                               RS232/485, TCP/IP, USB host
Interface for Access Control:           Third-Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Signal Wiegand:                                  Inputs and outputs
Display it:                                             TFT Color LCD Screen
Styles of Interface:                             Common, Matrix, and Magic style
Function Standard:                            Anti-passback Webserver
Optional features:                                 Card of ID, Mifare Card
Supply of Power:                                 DC 12V,3A
Operating temperatures:                   0 °C – 45 °C
Operating humidity:                           20%-80%

More Information: ZKTeco F22 Time Attendance and Access Control

. Why We Used Zkteco F18?

Standard Function Model ZKTeco Fingerprint F18/F18s Webserver, Passback Prevention Optional Purpose Mifare card, ID card Display Yes, Biometric Reader Optical Sensor ZK Capacity for fingerprints 3000 The capacity of
RF Cards 5000 Logs Available 100000 Interface Designs Styles like Common, Matrix, and Magic Interaction with the media TCP/IP, RS232/485, and USB-host Control Interface for Access Electric lock, door sensor, exit button,
alarm, and doorbell from a third party Indicator Wiegand Entry and Exit Iteration Version ZK Finger VX 9.0 and 10. Energy Adapter 12V DC,3A Dimensions 80 x 183 x 42mm Feature The version of the algorithm: ZK Finger VX9.0&10.0.
regular operation: web server, anti-passback, user recognition after one touch in a second, ZK optical sensor fingerprint reader has long-lasting and excellent precision, stores 30,000 transactions, 5,000 cards, and 3000 templates.
reads a CARD or fingerprint, integrated smart card reader (optional), Serial and Ethernet ports built-in, Tamper-resistant switch
