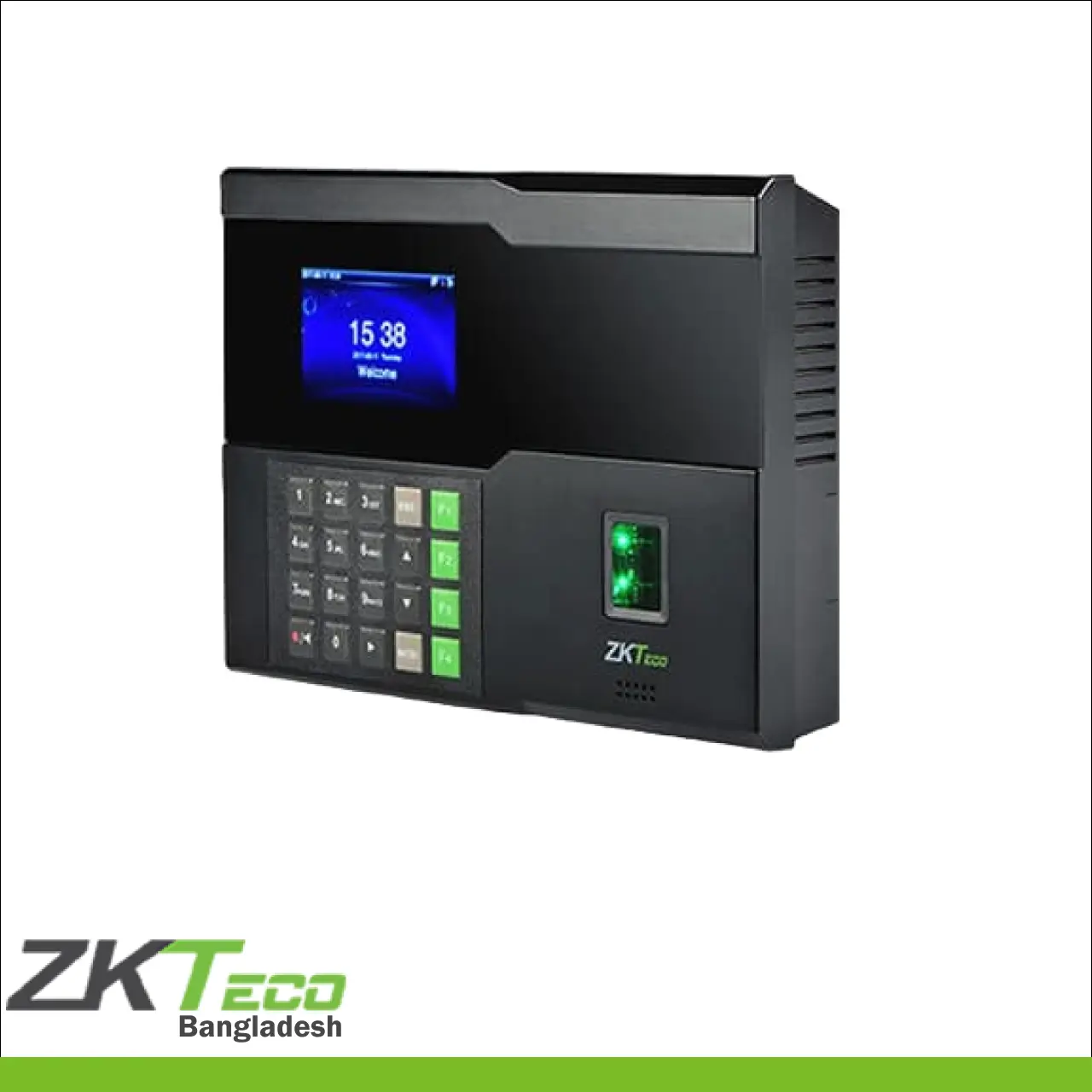

ZKTeco IN05-A Time Attendance And Access Control

ZKTeco N05 is a fingerprint identification time & attendance and access control terminal, which can connect with a third-party electric lock, door sensor, and exit button, etc. Communicating via Wi-Fi, TCP/IP, 3G, and USB host ensures a smooth connection and data transfer.

Time Attendance And Access Control

It’s associated with ZK new fingerprint reader, the operation remains stable under a strong light source and high preciseness of verification of wet and rough fingers. Amazing verification speed and an intuitive operation process make it popular. It will match your slap-up office perfectly.

ZKTeco IN05-A Specification:

Model:                            ZKTeco IN05-A
Biometric:                     Fingerprint
RF Optional:                  125kHz EM / 13.56MHz M
Max  User(1:N):              10,000
Fingerprint (1:N):            3,000 standard / 10,000 Optional
Record:                        100,000
nterfaceTCP/IP:              10/100 M
PoE Optional:                  802.3 at 28W
Wi-Fi:                         802.11 B/G/N
3G Optional:                   WCDMA
USB: USB 2.0 (Host)
RS232:                         1 port for external printer
RS485:                         1 port for FP reader
Relay:                         2 relays
Wiegand:                      1ch In & Out
Input:                         1 Input
Hardware:                      LCD3.0” Color LCD
Sound:                         24-bit
Operating Temp.:            0 °C – 45 °C
Operating Humidity:      20% ~ 80%
Power:                         DC 12V 1.5A
DC 12V 3A:                     Dimensions(W x H x D mm) 213*155*107.81mm
Certificates: CE, FCC, RoHS
Function
Standard:                      Automatic Status Switch, Self-Service Query, DST, T9 Input, 9 Digit
User ID, Scheduled Bell, Photo ID, Lock, sensor, Exit button
Optional
ID / MF, ADMS
ZKTime.net 3.0, BioTime 8.0, ZKAccess 3.5

Watch this video for more information

1. Which is the recommended finger to be used for a fingerprint scanner?
You can use any of the ten fingers for verification. The index and thumb are much easier for the scanner to capture rather than other fingers.

2. Does this fingerprint device secure?
It is highly secure for you, and it enhances your privacy by providing encryption and biometrics functionality. In this technology, fingerprints cannot be duplicated or stolen.

3. Can fingerprint images be duplicated?
No.
